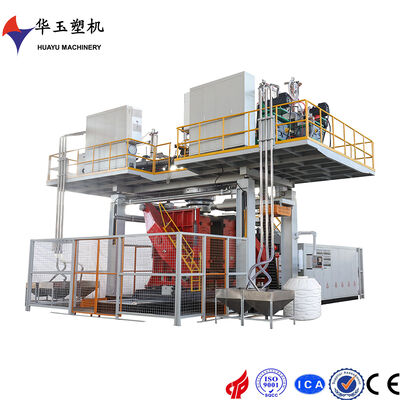

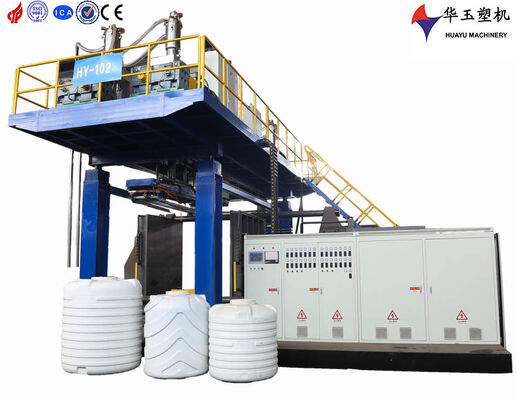

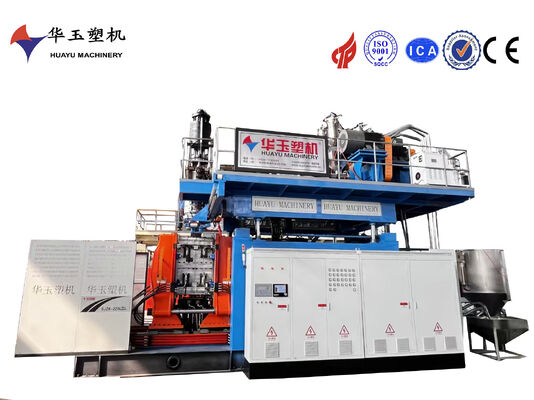

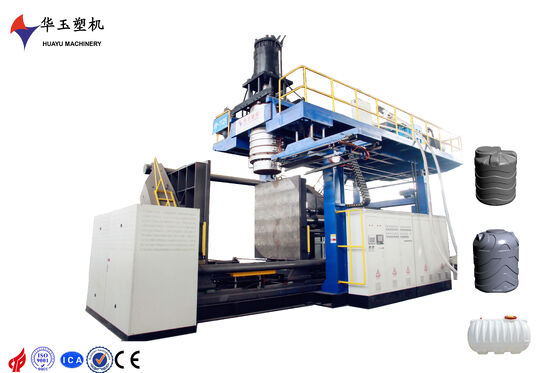

5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System

  • 5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
  • 5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
  • 5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
  • 5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
Lugar de origen Porcelana
Nombre de la marca Huayu
Certificación CE,ISO9001
Número de modelo HYBM-5008
Cantidad de orden mínima 1 juego
Precio Negotiate
Detalles de empaquetado por contenedor
Tiempo de entrega 4 meses
Condiciones de pago LC, T/T
Capacidad de la fuente 4 juegos por mes
Datos del producto
Material de la tolva Acero inoxidable Material del tornillo 38 CrMoAIA, nitruración
Material PEAD Durabilidad Excelente
Sistema de enfriamiento Refrigeración por agua Material del molde Aluminio
Color Personalizado Voltaje depende
Thermorelay siemens
Resaltar

5000L IBC blow molding machine

,

8-layer co-extrusion IBC machine

,

water cooling blow molding machine
Deja un mensaje
Descripción de producto
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
This energy-saving blow molding machine features a 5000L capacity and 8-layer co-extrusion technology designed to optimize energy usage. The integrated water tank system ensures rapid and effective cooling, significantly reducing energy consumption and operational costs. With an advanced control system providing precise process control, the machine delivers high-quality products consistently. Built for durability and reliable performance, it is ideal for large-scale production environments. The water tank is engineered for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for industrial production needs.
Clamping System Specifications
Parameter Specification Features
Platen Size 2400*2500*70mm (W*H*T) Smooth running, no noise; high clamping force
Clamping Cylinder 350+200*2 -
Clamping Cylinder Stroke 2200mm -
Clamping Force 3000KN -
Distance Between Platens 1600-4000mm -
Maximum Mold Size 1800*2500mm (W*H) -
Blowing and Cooling System Specifications
Parameter Specification
Stretching Stroke According to products
Blow Pin Up/Down Stroke 600mm
Air Seat Stroke 400mm
Maximum Air Pressure 0.8Mpa
Air Consumption 3m³/min
Cooling Method Circulating water
Water Pressure 0.3MPa
Cooling Water Consumption 75m³/h
5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System 0
