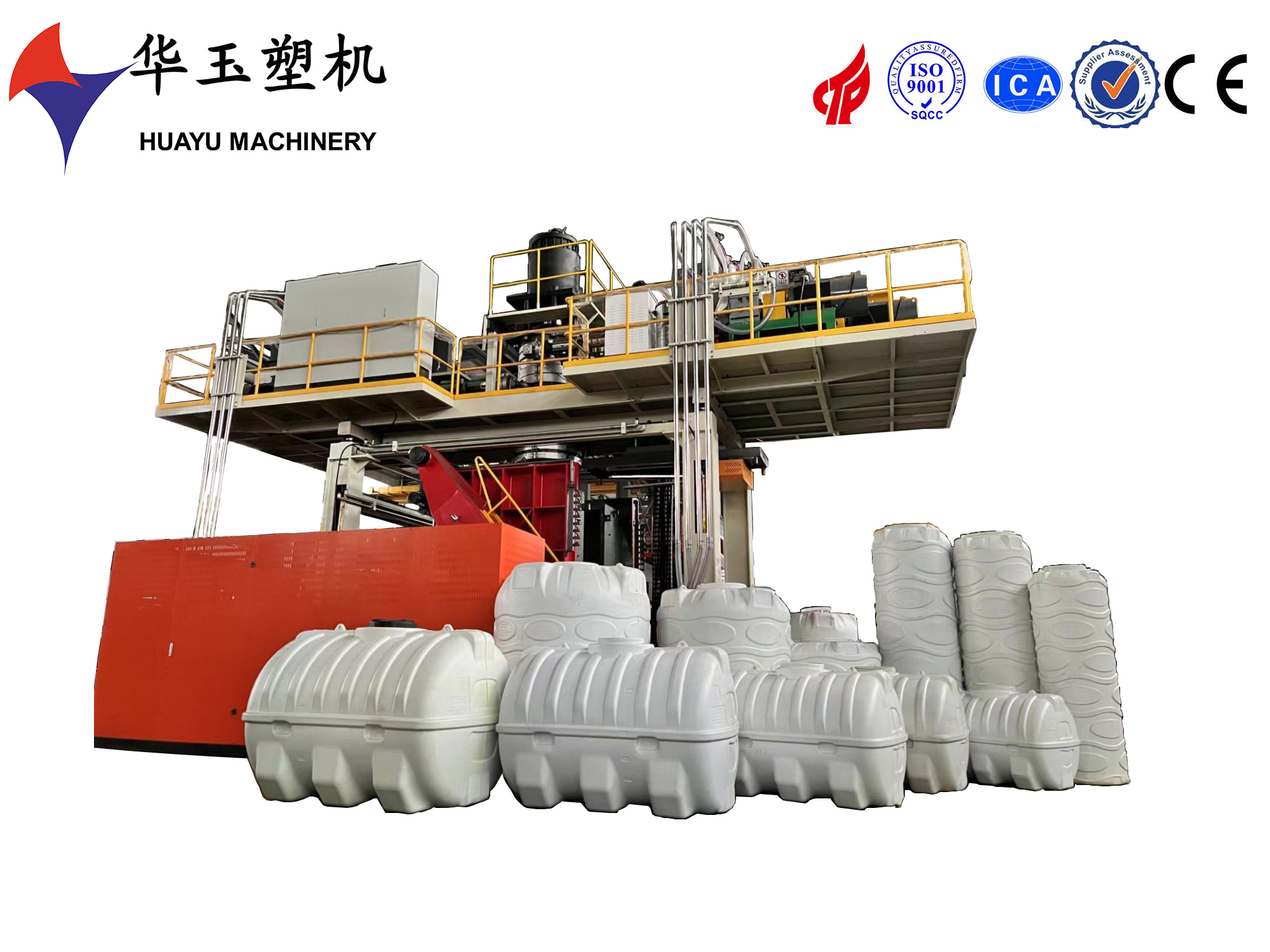

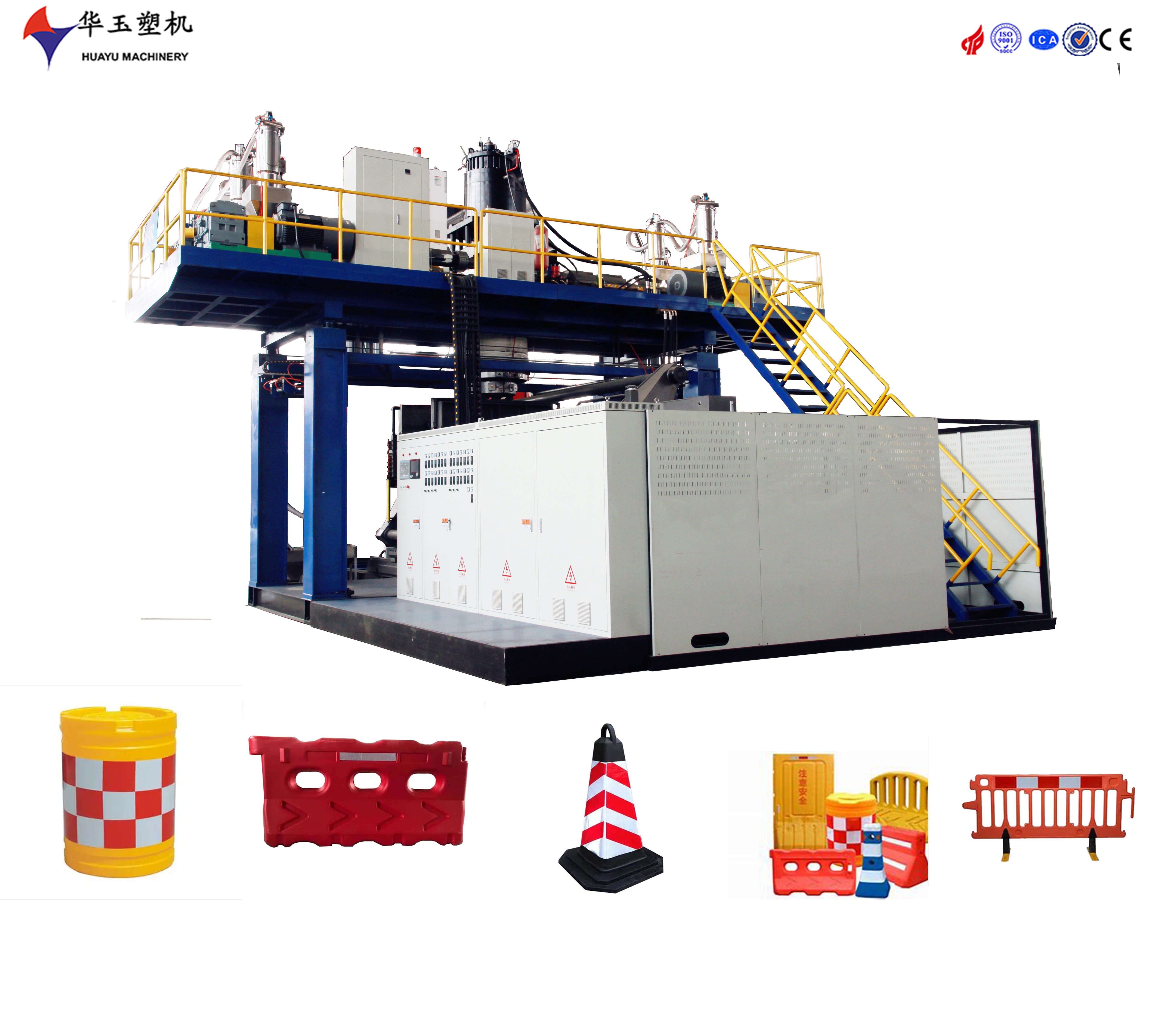

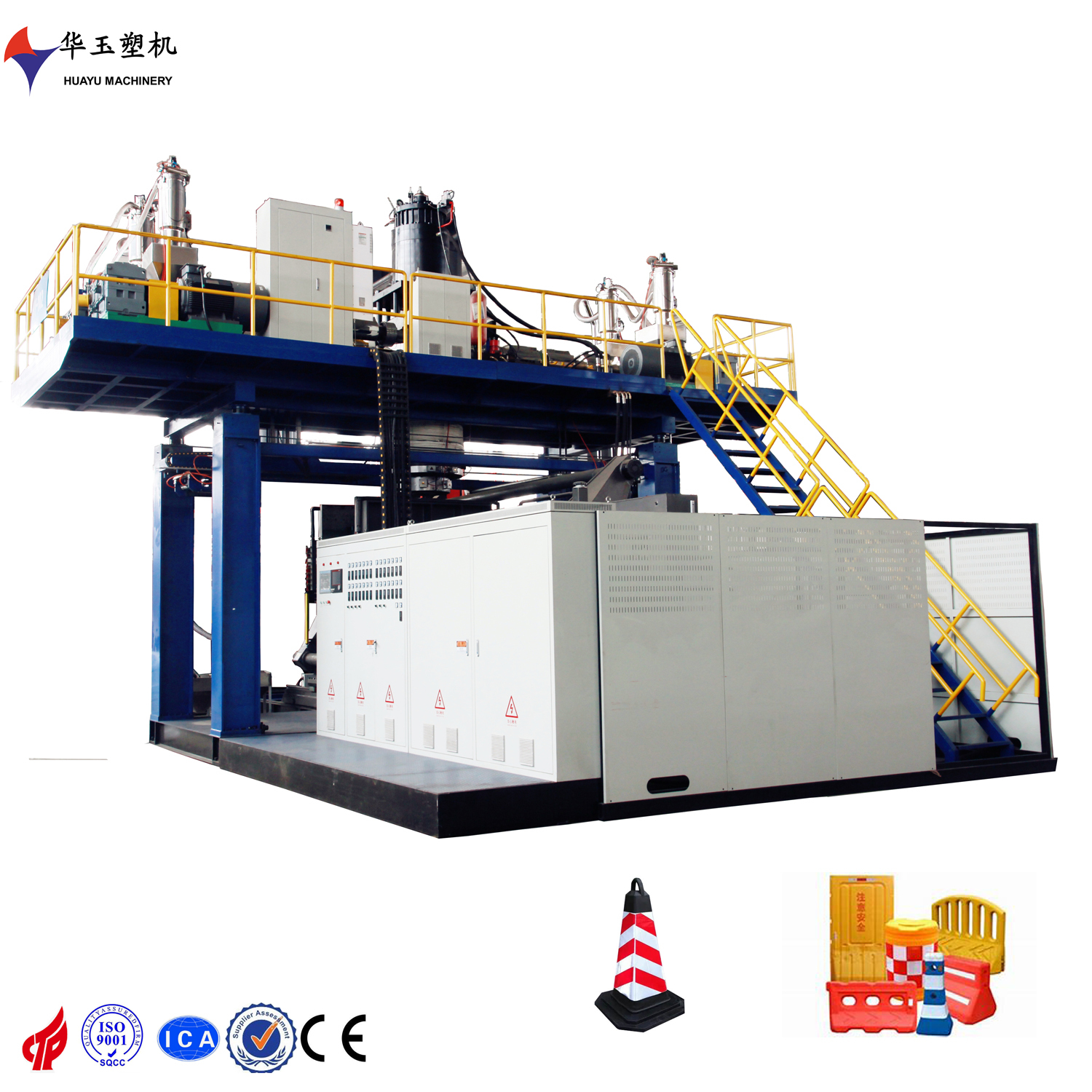

2000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Lugar de origen PORCELANA
Nombre de la marca HUAYU
Certificación ISO9001 CE
Número de modelo HYBM2000-2 y sus derivados
Cantidad de orden mínima 1 set
Precio 200000 USD
Detalles de empaquetado Se desmonta en muchas partes para el transporte en contenedores
Tiempo de entrega 4 meses
Condiciones de pago T/T, L/C
Capacidad de la fuente 1 conjunto de 120 días

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Productividad 10-24 piezas por hora Interruptor del aire Schneider
Palabras clave Máquina de moldeo por soplado por extrusión Descomposición de la máquina 8.5 por 6 por 7.2
Capas 7 capas Año 2024
Material aplicable HDPE Automatización Automatización
Motor Siemens tirada del cilindro de sujeción 2000 mm
Fuente de energía Eléctrico Fuerza del motor extrusor 75kw
Presión máxima del aire 0.8MPA Consumo promedio de energía 300kw
Volumen máximo 5 galones
Resaltar

2000L water tank blow molding machine

,

heavy-duty water tank machine

,

2-layer blow molding machine

Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Deja un mensaje
Descripción de producto

This 2000L two-layer heavy-duty blow molding machine is designed for producing high-quality multi-layer plastic products. The dual-layer co-extrusion system allows for enhanced material flexibility and improved product performance. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 Extrusion System

crew diameter

130mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

110kw



Reducer

375

Best quality brand in china ,long life and low noise

Screw heating power

5.5kw*12



Plasticizing capacity

400kg/h



 die head

Accumulator capacity

60kg

designed  by ourselves and get the patent

Die diameter

According to products

Die head heating power

60kw
