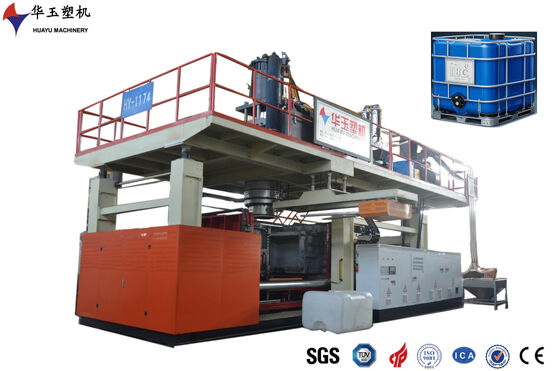

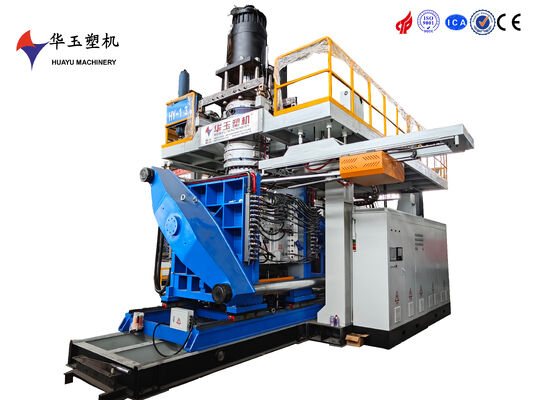

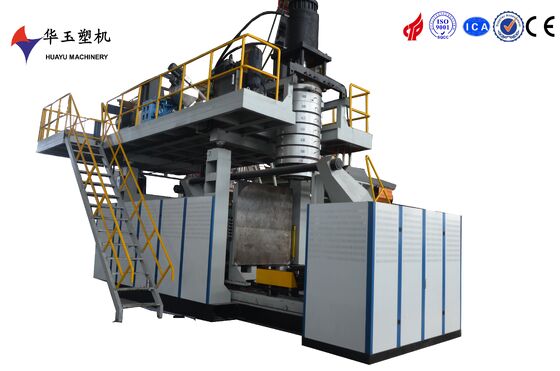

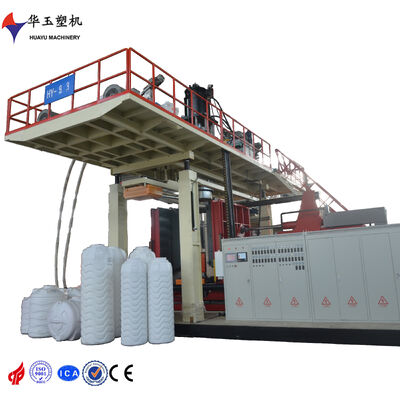

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

Lugar de origen PORCELANA
Nombre de la marca HUAYU
Certificación ISO9001 CE
Número de modelo HYBM3000-5 y sus componentes
Cantidad de orden mínima 1 set
Precio 380000 USD
Detalles de empaquetado Se desmonta en muchas partes para el transporte en contenedores
Tiempo de entrega 4 meses
Condiciones de pago T/T, L/C
Capacidad de la fuente 1 conjunto de 120 días

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Tipo de máquina Máquina para hacer botellas de plástico de alta velocidad Pantalla táctil Siemens
Válvula serva Moog Capacidad de plastificación 800 kg/h
Caja de engranajes Guomao Método de limpieza Limpieza fácil
Material de la tolva Acero inoxidable Interruptor del aire Schneider
Rango de capacidad 500--3000L, 5 capas Sistema de enfriamiento de moldes Refrigeración por aire
Presión máxima del aire 0.8MPA Capacidad 1000 litros
Motor de alimentación 2.2/2.2/2.2kw Garantizar 1 año
Tipo de molde Estación individual
Resaltar

3000L water tank blow molding machine

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Deja un mensaje
Descripción de producto

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
